• 9:1 impedance transformer UNUN  1 Kw PEP

9:1 impedance transformer UNUN 1 Kw PEP

  • Brand: Wire Antennas UK
  • Product Code: 9:1 impedance transformer UNUN 1KW
  • Availability: 6

  • £75.00

  • Ex Tax: £75.00

An impedance transformer (9:1) to feed a high impedance, end fed (unbalanced) random wire which is likely to be a few hundred ohms, and transform it into something closer to a 50Ω (unbalanced) coaxial input. 1 kW

Covering 160 meters to 20 meters

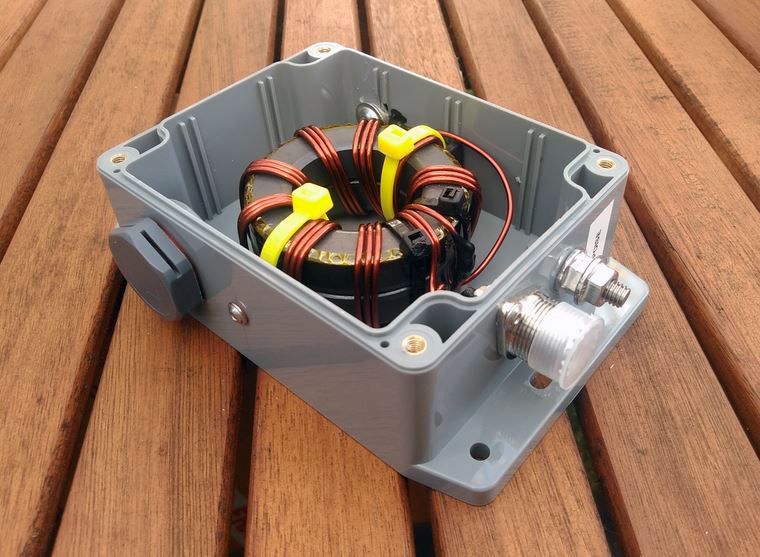

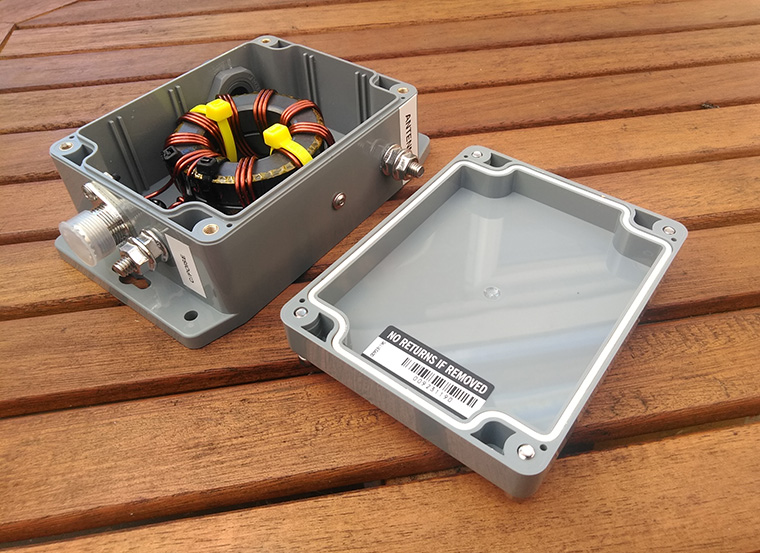

UNUN Balun 9:1  2x Stacked Type 43 Fair Rite core material giving extremely flat bandwidth.
Note these cores are expensive and beware cheap 9:1's will not perform as you expect.
Low Insertion Loss and exceptional match to 450 ohm right across all HF bands.
Stainless steel hardware.
Wire is Class H 212 Deg Celsius double coat enamel.

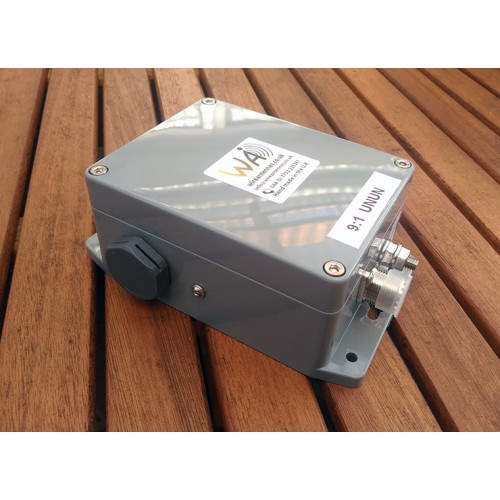

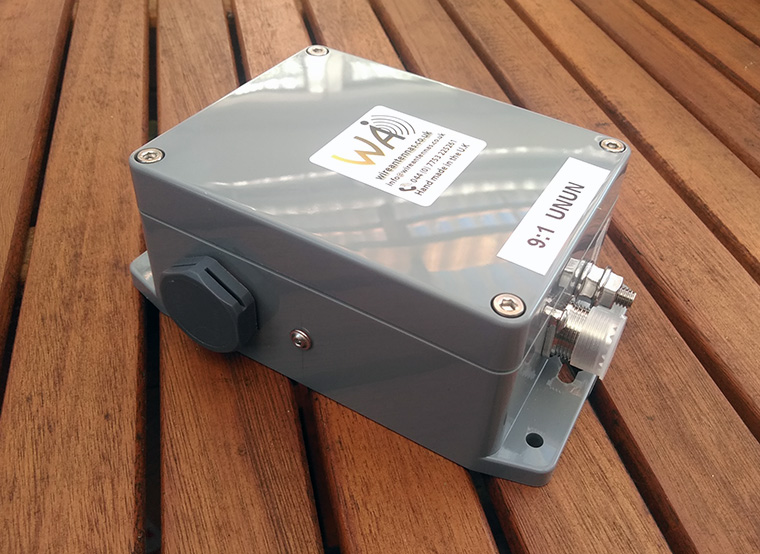

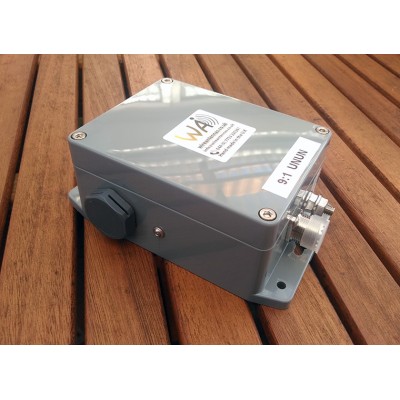

Sealed weatherproof box  Usable Frequency Range 160m to 20m.
High Quality means paying for what you get  Cheap = very inefficient = very hot.
Would you connect anything less to your expensive radio equipment.

We offer good product customer support.
