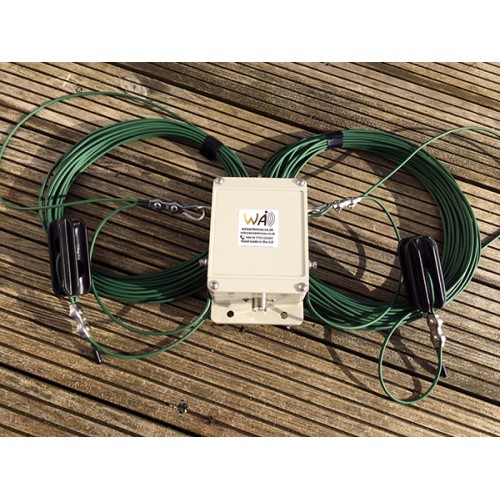

Windom Multi Band Antenna 80 - 10 meters with Kevlar radials
- Brand: Wire Antennas UK
- Product Code: Windom Multi Band Antenna 80 - 10 meters with Kevlar radials
- Availability: 5
-
£145.00
- Ex Tax: £145.00
The antenna cover 80, 40, 20, 17, 12, 10 with no tuner required !
1.5 Kw power handling
The antenna cover 80, 40, 20, 17, 12, 10, and 6 meters, with no tuner required !
1.5 Kw power handling.
Wire antennas are a great simple way to work 40M and 80M rather than a noisy vertical antenna that requires horizontal radials.
The 7-Band antenna is OCF (off-center-fed), with a 46 foot ( 14.25 meters ) leg and a 90 foot ( 27.4 meters ) leg, totaling 135 feet or 41 meters setup as T Top .
As an inverted V, with the middle at (10 meters) 30 feet high and the ends at ( 3 meters ) 10 feet the 7-Band antenna requires about 120 feet 37 meters of ground space.
Very high quality components used throughout the antenna for long life cycle.
Stainless steel hardware and fittings.
Boxes are currently black
Large insulators
Wire colour is green 2.8 mm RF 2KW.
90 Kg Load
Like all of our products quality is key.
