  •  SOTA - HWEF KEVLAR  QRP 49:1 10 WATTS MULTI BAND Linked wire antenna

SOTA - HWEF KEVLAR QRP 49:1 10 WATTS MULTI BAND Linked wire antenna

  • Brand: Wire Antennas UK
  • Product Code: SOTA HWEF KEVLAR QRP 49:1 10 WATTS Linked wire antenna
  • Availability: Out Of Stock


  • £75.00

  • Ex Tax: £75.00

QRP HWEF ANTENNA WITH KEVLAR WIRE

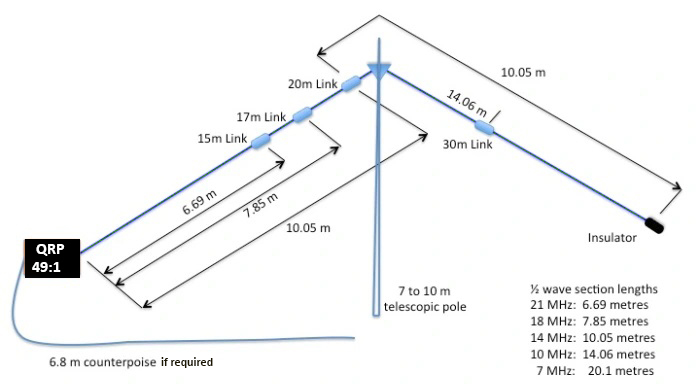

A 5  band antenna covering 15 / 17 / 20 / 30 / 40  meters.

The impedance transformer (49:1) feeds the end fed half wave wire close to a 50Ω (unbalanced) coaxial input. 10 watts pep

Kevlar wire is used on this antenna this makes the antenna light weight yet strong.

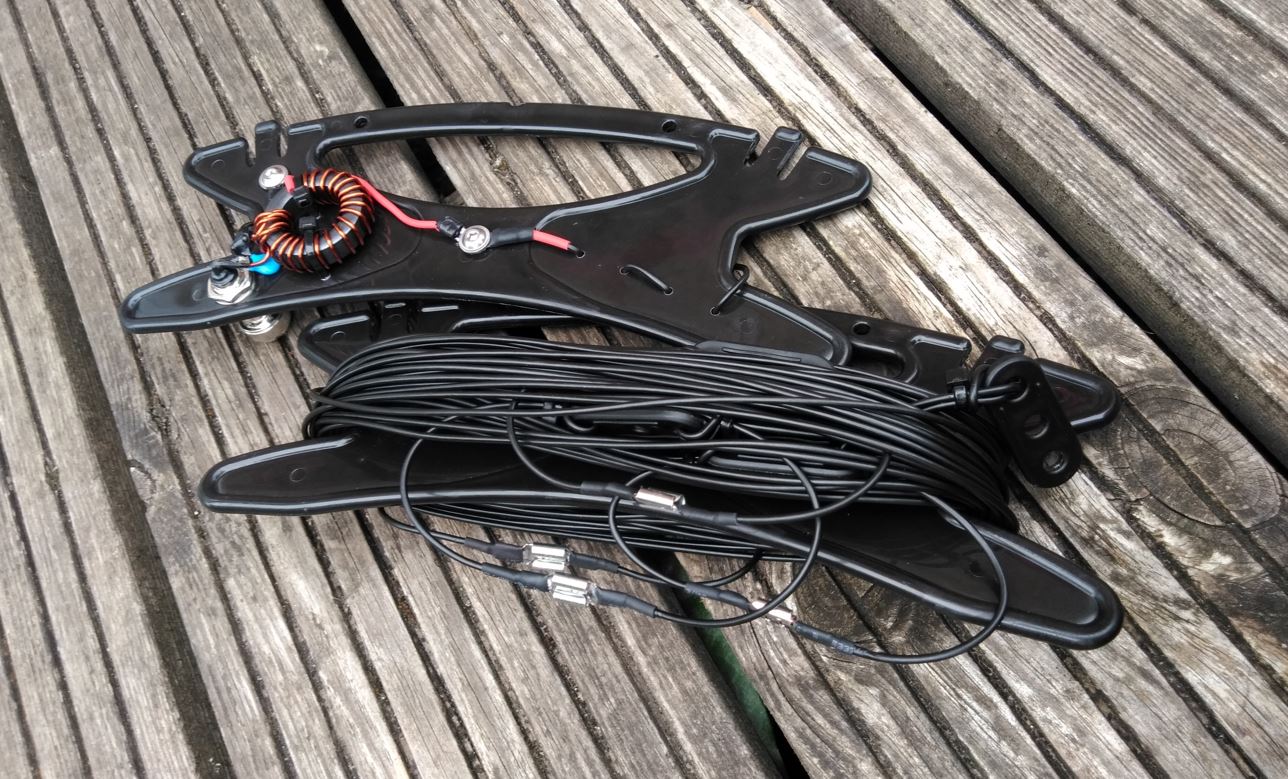

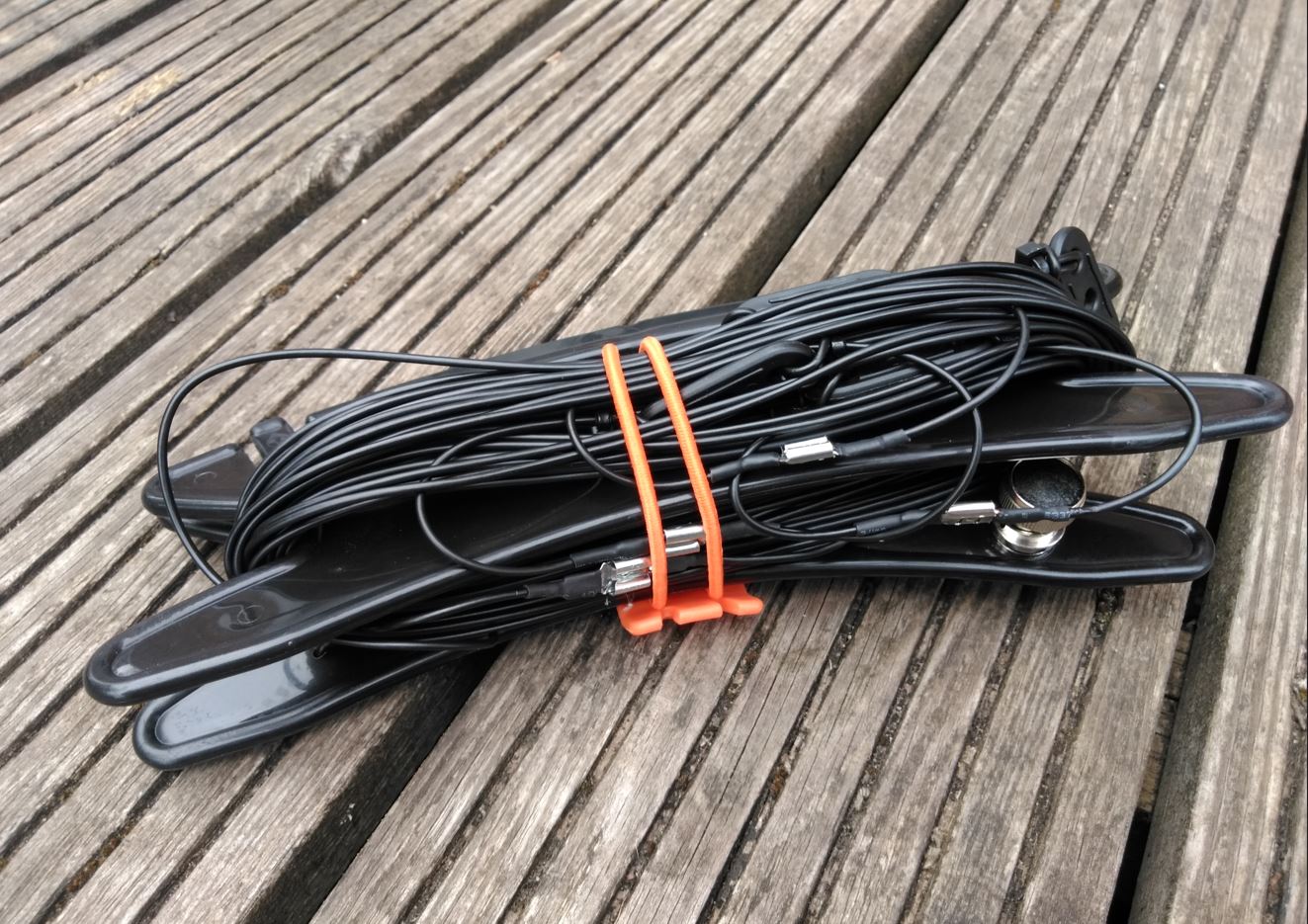

Comes on 2 winders but can be put on to only one. We give you 2 winders for flexibility.












Technical specification :
Kevlar wire                                       20.20 Meters long Kevlar wire
Type :                                               49:1 Unun
Frequency :                                      15 meters 21 MHz,
17 meters 18 MHz,  20 meters 14 MHz, 30 meters 10 MHz, 40 meters 7 MHz
Impedance ratio:                              49:1
Input Impedance:                             50Ω
Output Impedance:                          3200Ω
Power Handling(CW/SSB) :             5 / 10W
Core Type :                                      FT110-43 by Fair-rite® Co.
Capacitor 100pF 3KV



Assembled and tested.



We offer good product customer support.
