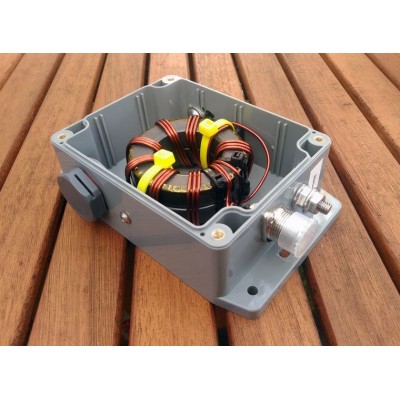

  • 9:1 UNUN Transformer 2 Kw 160 -10m

9:1 UNUN Transformer 2 Kw 160 -10m

  • Brand: Wire Antennas UK
  • Product Code: 9:1 UNUN Transformer 2 Kw
  • Availability: 4

  • £105.00

  • Ex Tax: £105.00

0 reviews / Write a review

9:1 IMPEDANCE TRANSFORMER  160 - 10 m

The End Fed antenna is very popular especially for field work. This transformer is designed to be used for half wave end feds covering 160 meters 10 meters.

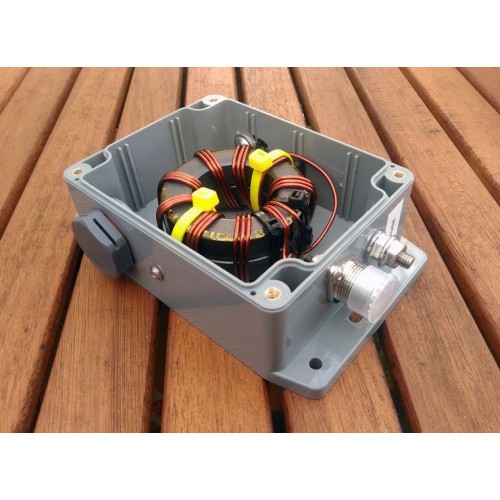

PHOTOS TO BE UPDATED TO 9:1






Technical specification :


Type :                                              9:1 Unun

Frequency :                                      1.8 MHz – 30.00 MHz

Impedance ratio:                              1:9

Input Impedance:                             50Ω

Output Impedance:                         450Ω

Power Handling(CW/SSB/ Digital Modes) :             2Kw  of peak power /  DM Modes 500 watts


Core Type :                                     3 x FT240-43 by Fair-rite® Co.


Wire type:                                         Enamel copper wire 2.0 mm (AWG 12)






Assembled and tested.

This transformer requires a feed line choke to isolate the coax feed line from the antenna.


Grounding at the lug next to the SO239 connector is recommended ! Long wires tend to collect electrostatic charges (usually when the weather is stormy) which can produce ESD (electrostatic discharge) at the end of your cable and damage your equipment.
